विशेषताएं: यह विशेष रूप से उच्च शुद्धता अर्धचालक उद्यो...

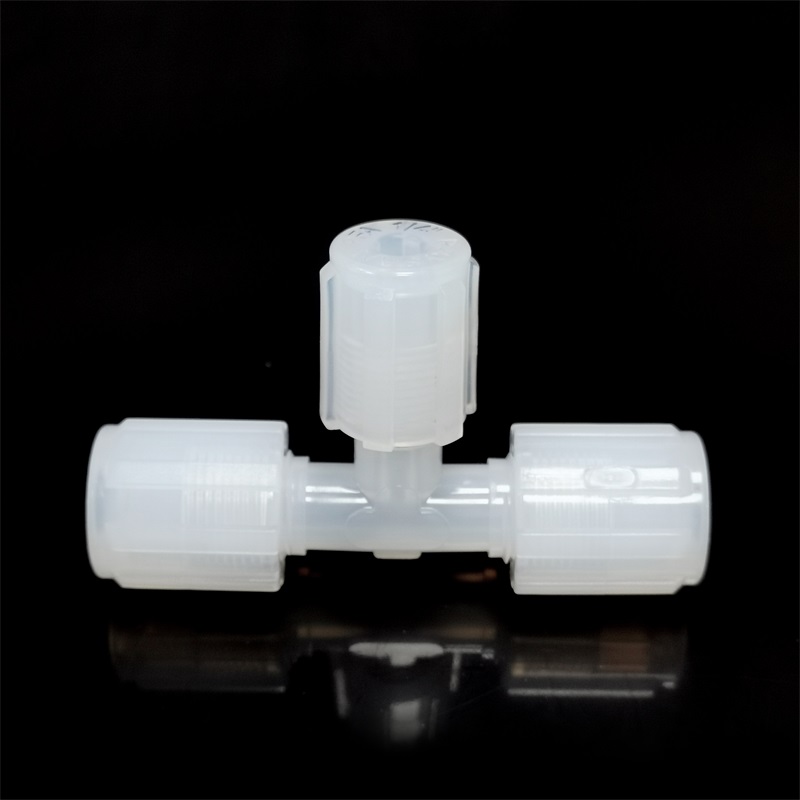

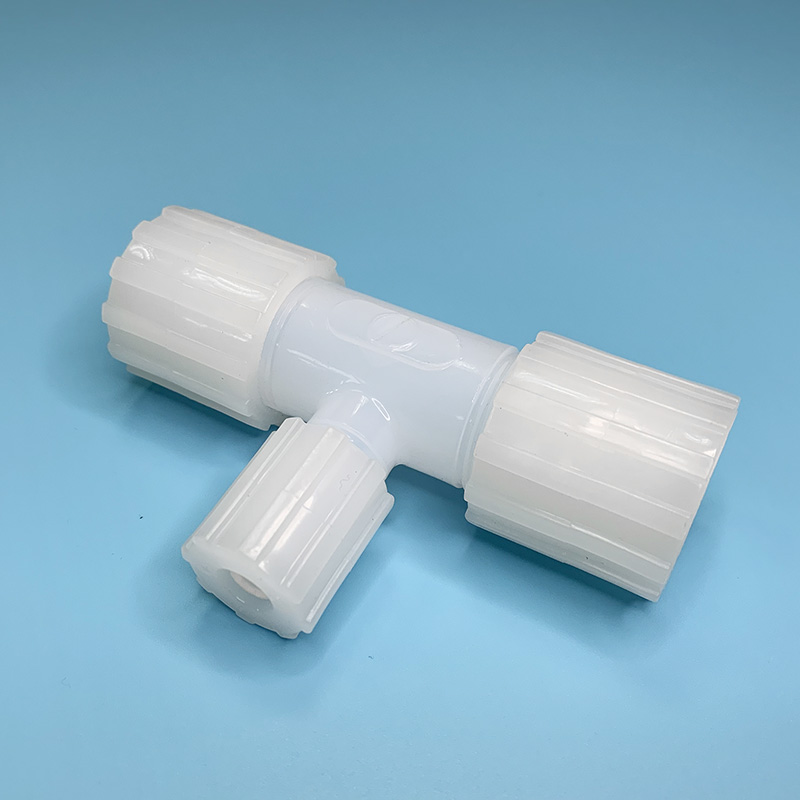

PFA यूनियन टी रिड्यूसर - CJUTR: विशेष रूप से उच्च-शुद्धता अर...

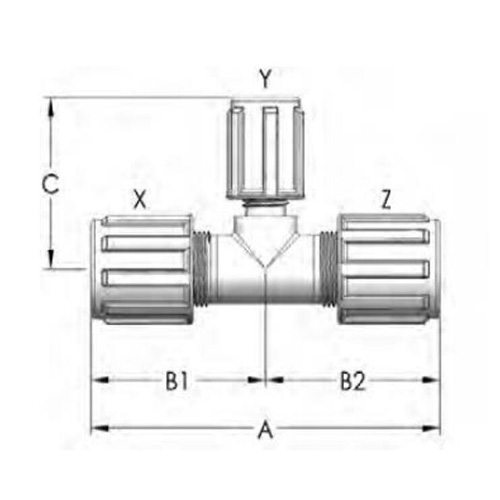

| भाग संख्या | OD X * Y * Z | Orifice | A | B1 | B2 | C |
| (इंच) | (मिमी) | (मिमी) | (मिमी) | (मिमी) | (मिमी) | |
| UTRA0604041 | 3/8"*1/4"*1/4" | 3.81mm | 86.87mm | 44.70mm | 42.16mm | 42.16mm |
| UTRA0604061 | 3/8"*1/4"*3/8" | 3.81mm | 89.41mm | 44.70mm | 44.70mm | 42.16mm |
| UTRA0606041 | 3/8"*3/8"*1/4" | 3.81mm | 86.87mm | 44.70mm | 42.16mm | 44.70mm |
| UTRA0804041 | 1/2"*1/4"*1/4" | 3.81mm | 89.66mm | 47.50 मिमी | 42.16mm | 42.16mm |
| UTRA0804061 | 1/2"*1/4"*3/8" | 3.81mm | 92.20mm | 47.50 मिमी | 44.70mm | 42.16mm |
| UTRA0804081 | 1/2"*1/4"*1/2" | 3.81mm | 95.00 मिमी | 47.50 मिमी | 47.50 मिमी | 42.16mm |
| UTRA0806061 | 1/2"*3/8"*3/8" | 6.35 मिमी | 92.20mm | 47.50 मिमी | 44.70mm | 44.70mm |
| UTRA0806081 | 1/2"*3/8"*1/2" | 6.35 मिमी | 95.00 मिमी | 47.50 मिमी | 47.50 मिमी | 44.70mm |
| UTRA0808041 | 1/2"*1/2"*1/4" | 3.81mm | 89.66mm | 47.50 मिमी | 42.16mm | 47.50 मिमी |
| UTRA0808061 | 1/2"*1/2"*3/8" | 9.65 मिमी | 92.20mm | 47.50 मिमी | 44.70mm | 47.50 मिमी |
| UTRA1204121 | 3/4"*1/4"*3/4" | 3.81mm | 112.78mm | 56.39mm | 56.39mm | 42.16mm |
| UTRA1206121 | 3/4"*3/8"*3/4" | 6.35 मिमी | 112.78mm | 56.39mm | 56.39mm | 44.70mm |
| UTRA1208081 | 3/4"*1/2"*1/2" | 9.65 मिमी | 103.89mm | 56.39mm | 47.50 मिमी | 47.50 मिमी |
| UTRA1208121 | 3/4"*1/2"*3/4” | 9.65 मिमी | 112.78mm | 56.39mm | 56.39mm | 47.50 मिमी |
| UTRA1212061 | 3/4"*3/4"*3/8" | 6.35 मिमी | 101.09mm | 56.39mm | 44.70mm | 56.39mm |
| UTRA1212081 | 3/4"*3/4"*1/2" | 9.65 मिमी | 103.89mm | 56.39mm | 47.50 मिमी | 56.39mm |
| UTRA1604161 | 1"*1/4"*1" | 3.81mm | 137.16mm | 68.58mm | 68.58mm | 51.31mm |
| UTRA1606161 | 1"*3/8"*1" | 6.35 मिमी | 137.16mm | 68.58mm | 68.58mm | 54.40 मिमी |
| UTRA1608161 | 1"*1/2"*1" | 9.65 मिमी | 137.16mm | 68.58mm | 68.58mm | 57.40 मिमी |
| UTRA1612161 | 1"*3/4"*1" | 16.00mm | 137.16mm | 68.58mm | 68.58mm | 56.39mm |
| UTRA1612121 | 1"*3/4"*3/4" | 16.00mm | 124.97mm | 68.58mm | 56.39mm | 56.39mm |
| UTRA1616081 | 1"*1"*1/2" | 9.65 मिमी | 124.97mm | 68.58mm | 56.39mm | 68.58mm |
| UTRA1616121 | 1"*1"*3/4” | 16.00mm | 124.97mm | 68.58mm | 56.39mm | 68.58mm |
