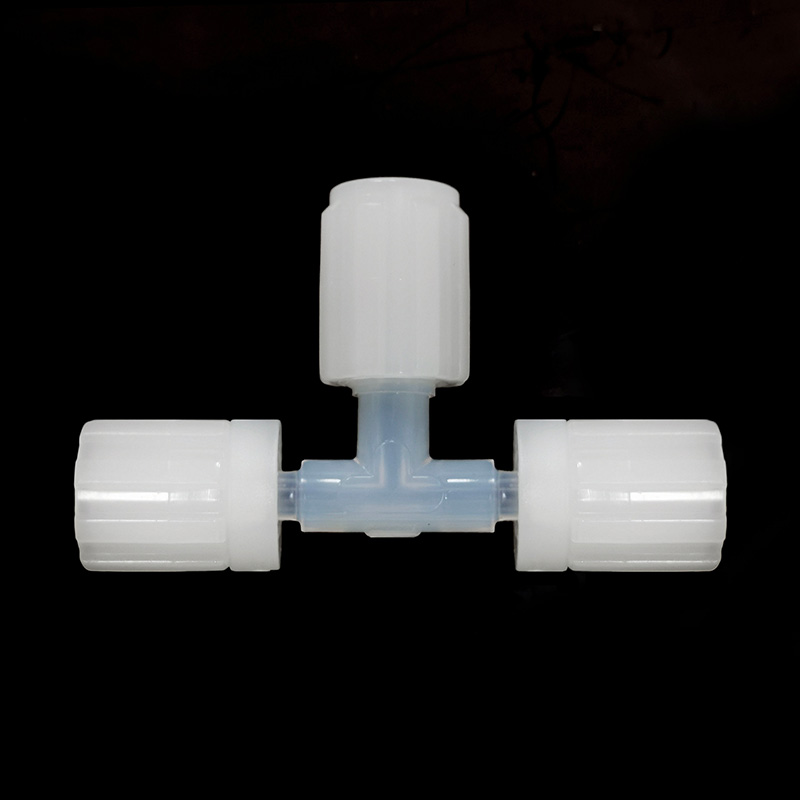

यह फ़्लेयर कनेक्टर के समान है, दबाव सील प्रभाव को प्राप...
विशेषताएं: यह विशेष रूप से उच्च शुद्धता अर्धचालक उद्यो...

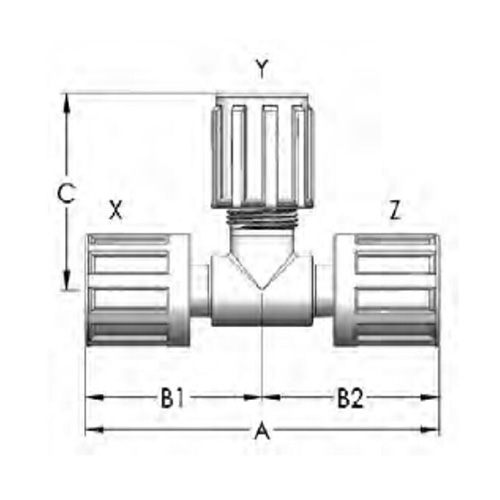

| भाग संख्या | एक्स (स्पेस सेविंग) | वाई | Z (स्पेस सेविंग) | Orifice | A | B1 | B2 | C |
| (इंच) | (इंच) | (इंच) | (मिमी) | (मिमी) | (मिमी) | (मिमी) | (मिमी) | |
| RTS2A04S0404S1 | 1/4" | 1/4" | 1/4" | 3.81mm | 83.31mm | 41.66mm | 41.66mm | 42.16mm |
| RTS2A06S0406S1 | 3/8" | 1/4" | 3/8" | 3.81mm | 87.88mm | 43.94mm | 43.94mm | 42.16mm |
| RTS2A06S06S1 | 3/8" | 3/8" | 3/8" | 6.35 मिमी | 87.88mm | 43.94mm | 43.94mm | 44.70mm |
| RTS2A06S0806S1 | 3/8" | 1/2" | 3/8" | 6.35 मिमी | 87.88mm | 43.94mm | 43.94mm | 47.50 मिमी |
| RTS2A08S0408S1 | 1/2" | 1/4" | 1/2" | 3.81mm | 93.47mm | 46.74mm | 46.74mm | 42.16mm |
| RTS2A08S0808S1 | 1/2" | 1/2" | 1/2" | 9.65 मिमी | 93.47mm | 46.74mm | 46.74mm | 47.50 मिमी |
| RTS2A08S1208S1 | 1/2" | 3/4" | 1/2" | 9.65 मिमी | 93.47mm | 46.74mm | 46.74mm | 56.39mm |
| RTS2A12S0412S1 | 3/4" | 1/4" | 3/4" | 3.81mm | 108.20mm | 54.10mm | 54.10mm | 42.16mm |
| RTS2A12S0612S1 | 3/4" | 3/8" | 3/4" | 6.35 मिमी | 108.20mm | 54.10mm | 54.10mm | 44.70mm |
| RTS2A12S0812S1 | 3/4" | 1/2" | 3/4" | 9.65 मिमी | 108.20mm | 54.10mm | 54.10mm | 47.50 मिमी |
| RTS2A12S1212S1 | 3/4" | 3/4" | 3/4" | 16.00mm | 108.20mm | 54.10mm | 54.10mm | 68.58mm |
| RTS2A16S0616S1 | 1" | 3/8" | 1" | 6.35 मिमी | 139.19mm | 69.60mm | 69.60mm | 54.10mm |
| RTS2A16S0816S1 | 1" | 1/2" | 1" | 9.65 मिमी | 139.19mm | 69.60mm | 69.60mm | 57.40 मिमी |
| RTS2A16S1216S1 | 1" | 3/4" | 1" | 16.00mm | 139.19mm | 69.60mm | 69.60mm | 56.13 मिमी |
| RTS2A16S1616S1 | 1" | 1" | 1" | 22.35 मिमी | 139.19mm | 69.60mm | 69.60mm | 68.58mm |
